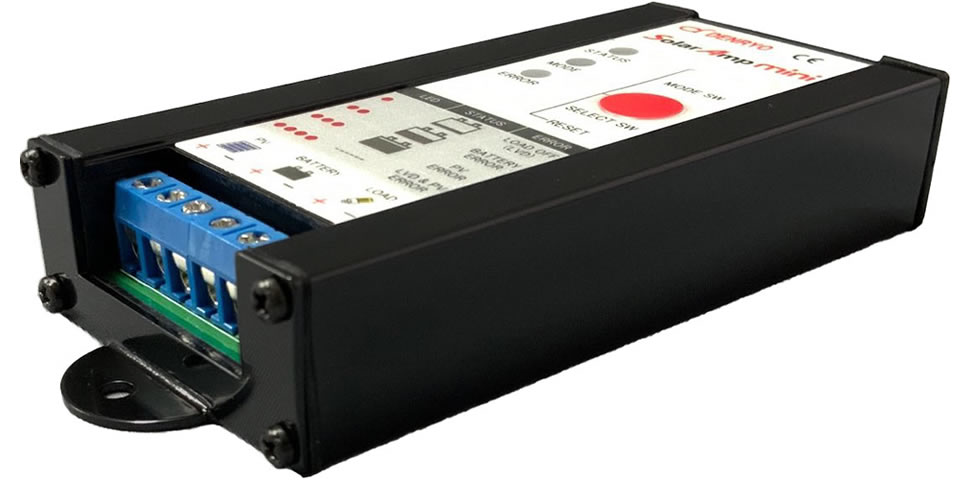

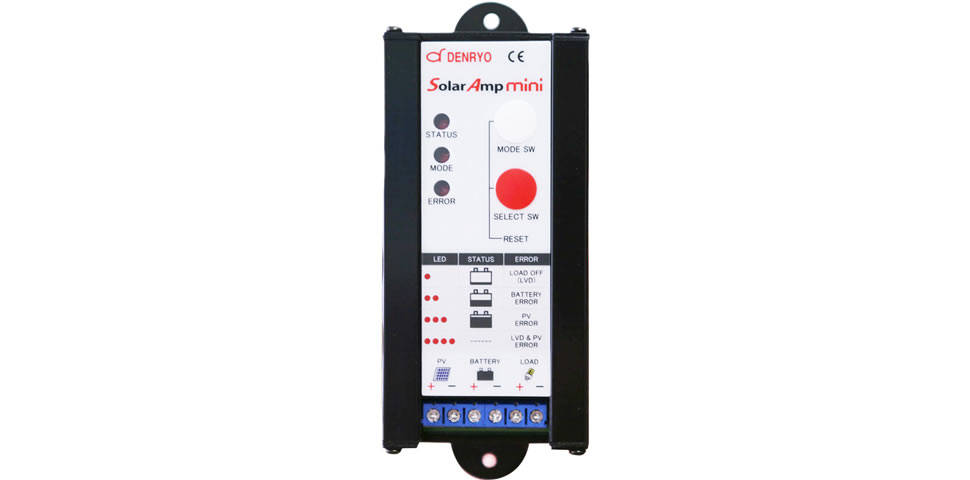

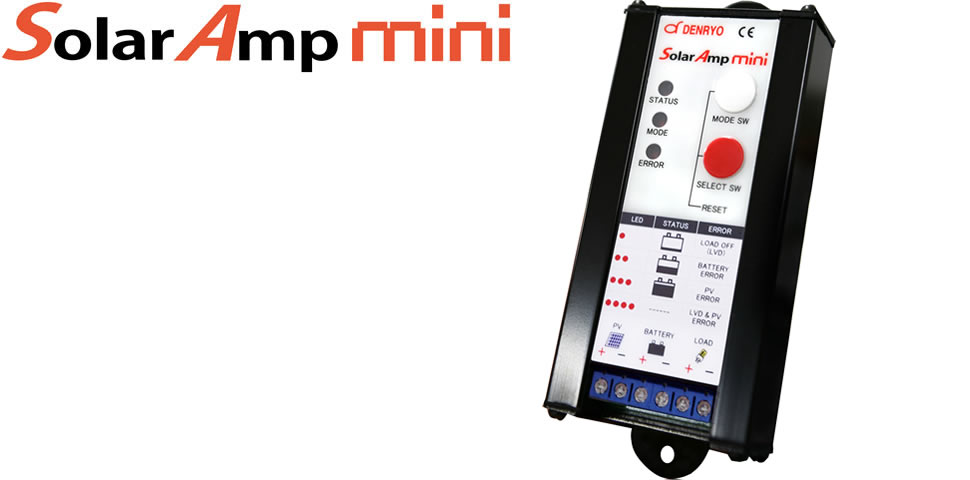

SolarAmp mini
;)
;)
;)
;)
;)
;)
Self-Consumption Current Less Than 1mA
In the off-grid system, any power consumption should be the less the better. Because the commercial power is not available in off-grid systems, the electricity generated by solar is so precious. One of the advantages SolarAmp mini has is that its self-consumption is less than 1mA. With low self-consumption, SolarAmp mini leads the systems to be stabler and longer. The more controllers you use, the more merits you can achieve.

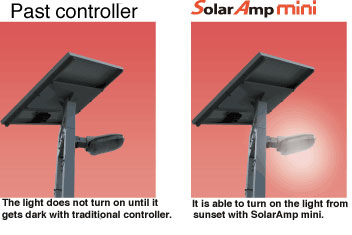

Early Start Lighting Function
Night Light Control and Selectable Timer
1. Normal Timer
Load ON 6, 8, 10, 12 or 14 hours of night time.
2. Dusk to Dawn
Load ON from dusk to dawn.
3. Rate Timer
The light is lighting only at the set rate, 40, 50, 60, 70 or 80% of night time.
The setting does not have to be reset again even the night-time changes.
4. Night Light OFF
Load is always on.
Mode |
Selectable Timer |
|---|---|
| Normal Timer | 6,8,10,12,14 hours of Night Time |
| Dusk to Dawn | Load ON from Dusk to Dawn |
| Rate Timer | 40, 50, 60, 70 , 80% of Night Time |
| Night light OFF | Load is always ON |
Model |

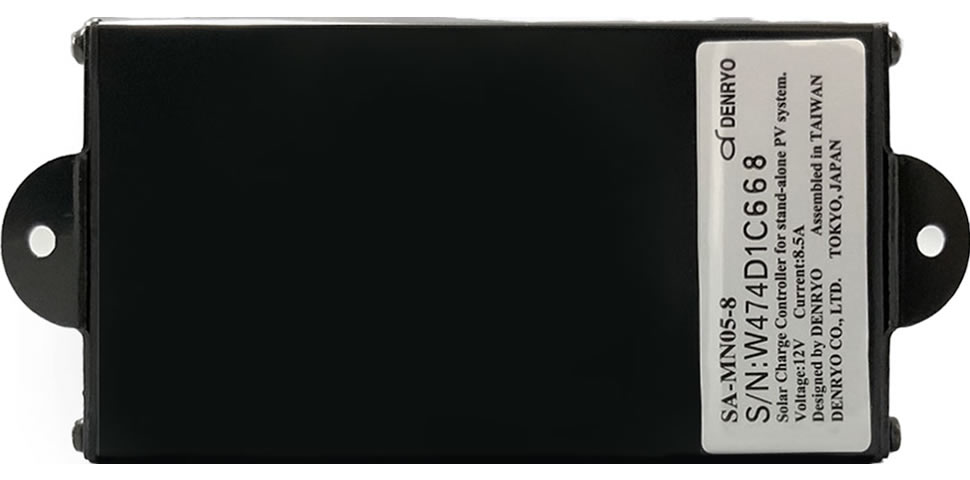

SA-MN05-8
|
|||
|---|---|---|---|---|
| System Voltage | 12V |
|||
| MAX Input Voltage | 25Vdc |
|||
| Solar Input Current | 8.5A |
|||
| Load Current | 8.5A |
|||
| Charging Method | PWM |
|||
| Charging Voltage |
Sealed : 14.1Vdc / Flooded : 14.4Vdc AGM : 14.3Vdc / Gel : 14.0Vdc |
|||
| Load Disconnect | 11.5Vdc |
|||
| Load Reconnect | 12.5Vdc |
|||
| Battery Types | ||||
| Ambient Temperature Range | -20～60°C |
|||
| Temperature Compensation | -30mV/°C |
|||
| Self-Consumption Current | 1mA |
|||
| Dimensions | 20×50×120(mm) |
|||
| Weight | 105g |
|||
