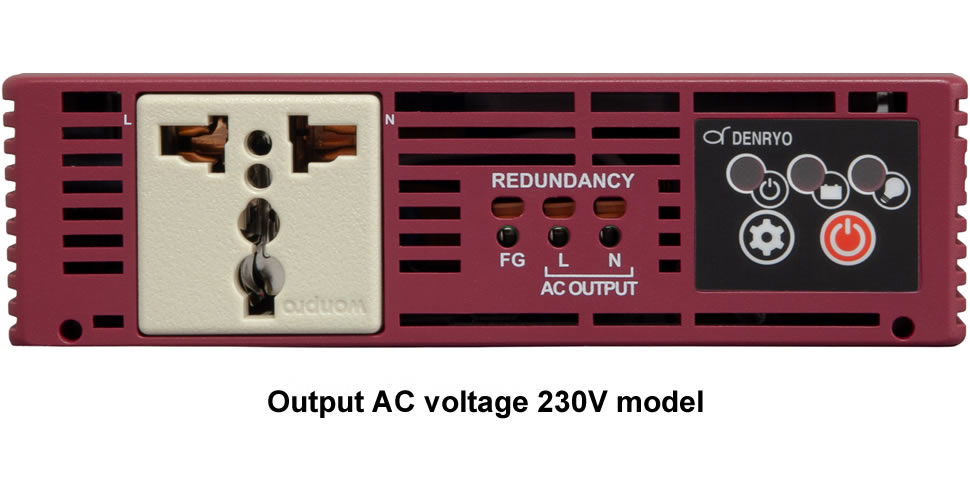

GR300

拡大写真

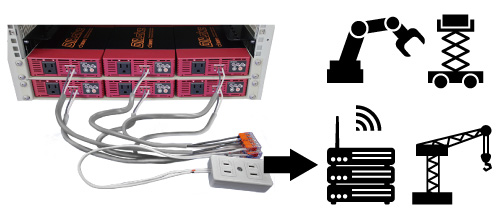

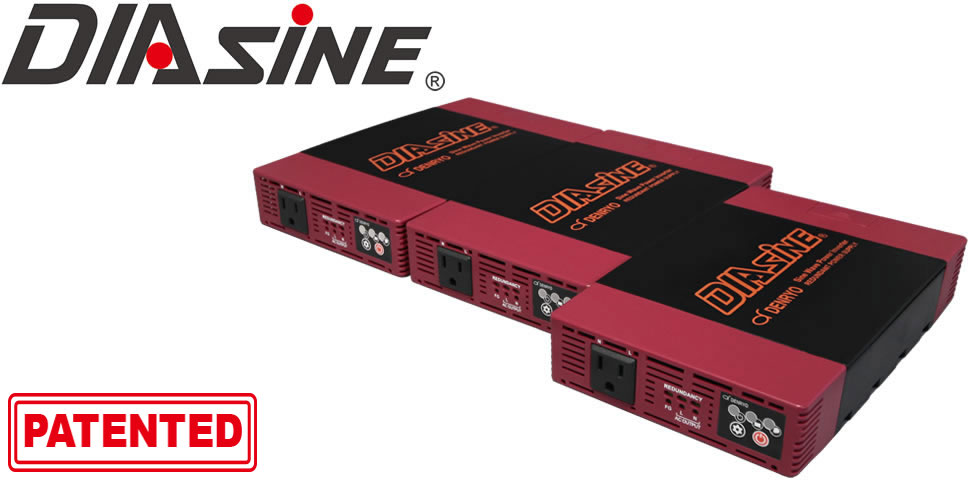

Parallel connection for power expansion up to 6 units (1.8kVA) without fan

DIASINE® GR300 series can be connected in parallel up to 6 units and the output power can be expanded to 1.8kVA without fan.

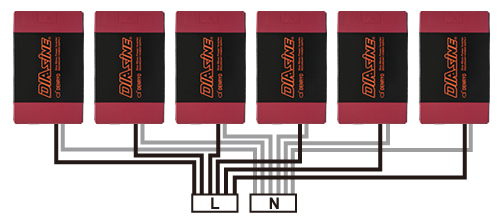

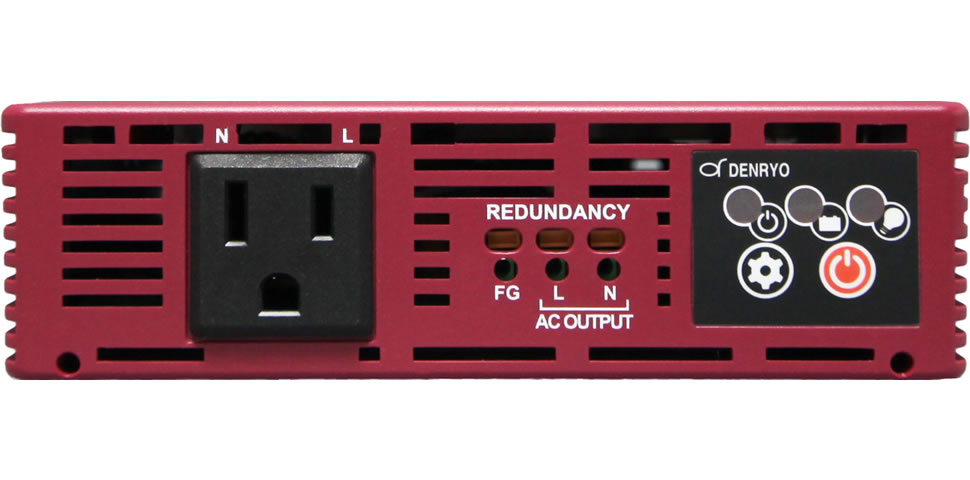

Synchronous control by AC output terminal

DENRYO’s original synchronous control technology (patented) enables GR300 work in parallel only have to connect AC output. This technology makes installation and operation become easier, because there is no need exclusive parallel control boards or complex synchronization signal setting like conventional products.

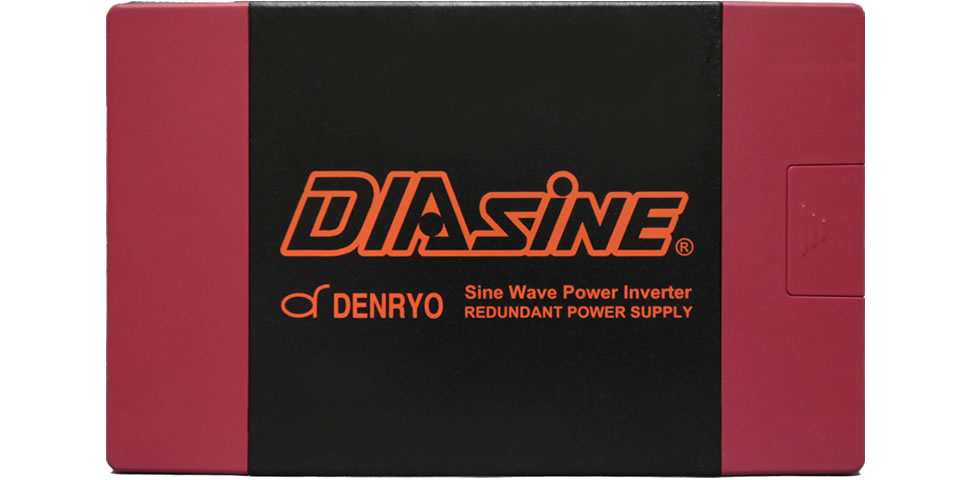

The smallest sine wave DC-AC power inverter in the world

DIASINE® has achieved the lightest weight of 0.9kg and the smallest volume of 1.5L in the same output class of inverters. The height of DIASINE® is 44mm/ 1.7 inch (1U). The lightweight and small features reduce the system weight and size.

Input reverse polarity connection protection by built-in circuit

Existing inverters will be damaged if the input battery is connected in reverse. DIASINE® has the exclusively own built-in circuit of input reverse polarity protection. This circuit protects DIASINE® not to get damaged even if the battery is connected with reverse polarity. Moreover, the reverse polarity warning LED of DIASINE® lights immediately to inform the user the reverse polarity connection.

Operating silently based on fanless structure

The efficient heat design achieved the fanless structure. The fanless structure leads silently operation without the fan-generated noise.

N+1 redundancy

Because of the N+1 redundancy, GR300 makes the system expanded easier at any time. The function can also prevent the system stopping if a single unit failure. This contributes to improved system stability and reliability.

Wide input voltage range

The input voltage range of DIASINE® is wider than other inverters in the same class. Therefore, batteries with wide range variation of voltage, such as lithium-ion batteries, can be used. It is also possible to charge battery while the DIASINE® is operating.

Wide range of operating temperature

DIASINE® operates under a wide range of temperature from -20 to 60°C. *DIASINE® GR300 will not stop the output automatically. Under the environment with temperature exceeding 30°C, please use the load along refer to the derating curve of each model.

Pure sine wave output and high efficiency

The output waveform is as same as the sine wave of commercial power supply, of which the total harmonic distortion is less than 3%. High-efficiency circuit and switching control achieve over 88% efficiency at rated load. It contributes to the stability of the system during operation without extra wasted energy consumption.

Switchable output voltage and frequency

The output voltage 100/110/115/120 Vac, and frequency 50/60 Hz easily switch by buttons. DIASINE® adapts to areas with different voltage, frequency, and various electric appliances.

Model GR300NA-112 GR300NA-124 GR300NA-148
Output rated power 300VA
Output peak power(3mins.) 360VA
Surge power(3secs.) 420VA
Input Battery Voltage 12Vdc 24Vdc 48Vdc
Output AC voltage (switchable) 100(default)/110/115/120Vac
Output frequency (switchable) 50±0.5Hz(default)50/60Hz
Output waveform Sine wave, (<3%THD)
Efficiency at rated load 88% 89%
No-load current*1(AC Output enable) 0.6A 0.2A 0.1A
No-load current*1(AC Output disable) 0.3A 0.1A <0.1A
Standby mode consumption*1 8mA 7mA 4mA
Sleep mode consumption*1 1mA 3mA 2mA
Input voltage range*2 10.5～19.5Vdc 21～39Vdc 42～78Vdc
Protection
Under Voltage Protection, Over Voltage Protection,
Input Reverse Polarity, Over Load Protection,
Short Circuit Protection, Output Voltage Error,
Over Temperature Protection (Detect by internal temperature sensors)
Safety standards EN62368-1
EMC Immunity EN55024
Emission EN55032
Withstand voltage
Battery I/P– AC O/P：3.0kVac
AC O/P– Ground：1.5kVac
Battery I/P– Ground：1.5kVac
Isolation resistance >1000MΩ/500Vdc/25℃/70%RH
Vibration
10～500Hz,3G 10min./ 1cycle, 60mins. XYZ axes
Operating temperature*3 -20～+30°C at rated load, +60°C at 60％ load -20～+45°C at rated load, +60°C at 80％ load
Operating humidity 20～90%RH non-condensing
Storage temperature/ humidity -30～+70°C, 10～95％RH (non-condensing)
Socket Type
Cooling Natural convection
Dimensions(L×W×H) 234.0×146.5×44.0mm
Weight 0.9kg
◆RoHS compliance
◆Specifications and appearance may change without prior notice.
◆All parameters NOT specially mentioned are measured at 112: 12Vdc, 124: 24Vdc, 148: 48Vdc input, rated load 300VA, power factor = 1.0, 25°C of ambient temperature and under the default setting.
※1 Average.
※2 Tolerance of voltage: 112：±0.5V, 124：±1V and 148：±2V.
※3 Please refer to the derating curve graph.

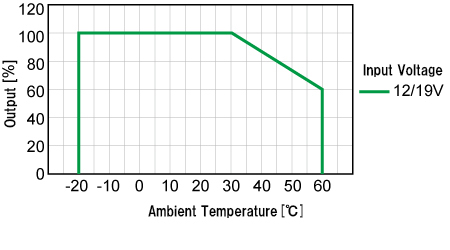

GR300NA-112

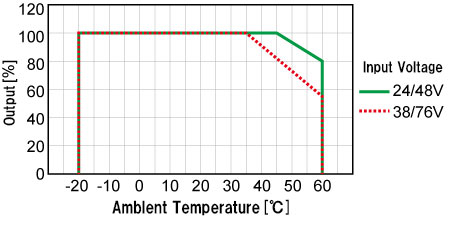

De-rating Curve

GR300NA-124/148

De-rating Curve
