GD300
;)
;)
;)
;)
;)
;)
;)
;)

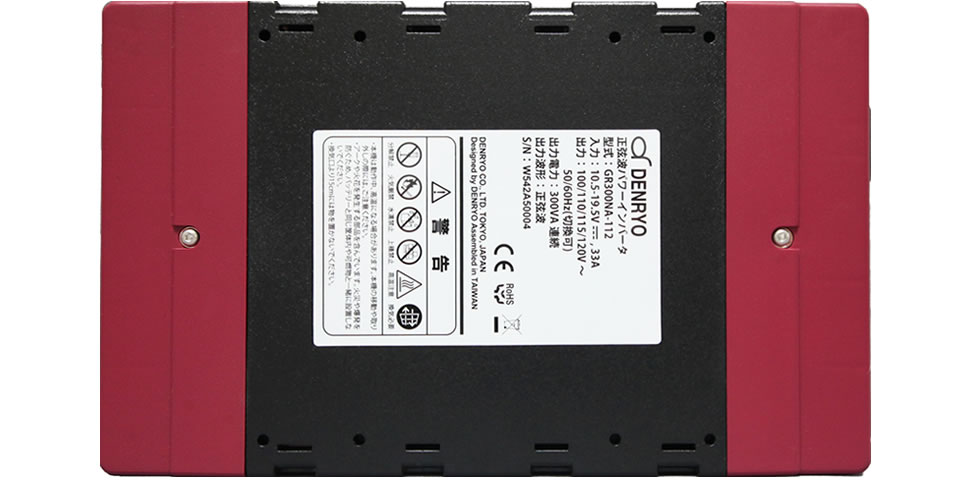

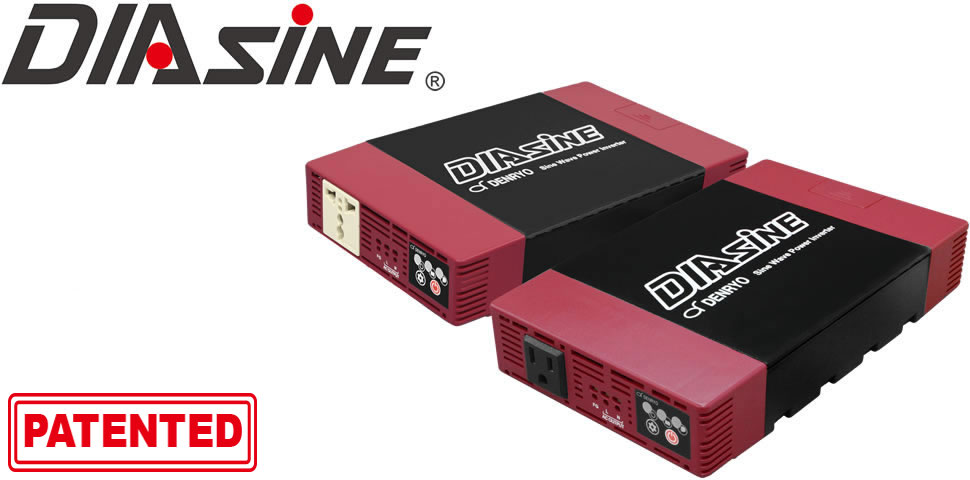

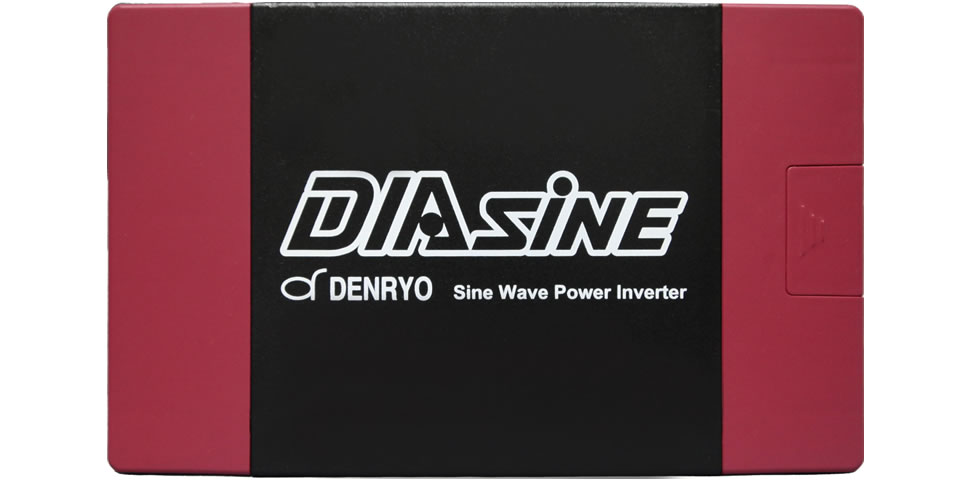

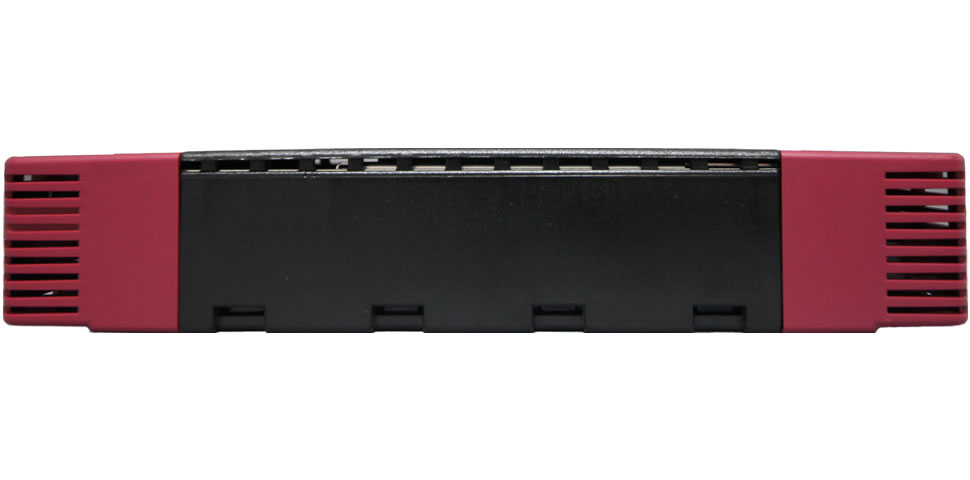

The smallest sine wave DC-AC power inverter in the world
DIASINE®has achieved the lightest weight of 0.9kg and the smallest volume of 1.5L in the same output class of inverters. The height of DIASINE® is 44mm/ 1.7 inch (1U). The lightweight and small features reduce the system weight and size.
Input reverse polarity connection protection by built-in circuit
Existing inverters will be damaged if the input battery is connected in reverse. DIASINE® has the exclusively own built-in circuit of input reverse polarity protection. This circuit protects DIASINE® not to get damaged even if the battery is connected with reverse polarity. Moreover, the reverse polarity warning LED of DIASINE® lights immediately to inform the user the reverse polarity connection.
Operating silently based on fanless structure
The input voltage range of DIASINE® is wider than other inverters in the same class. Therefore, batteries with wide range variation of voltage, such as lithium-ion batteries, can be used. It is also possible to charge battery while the DIASINE® is operating.
Input reverse polarity connection protection by built-in circuit
Existing inverters will be damaged if the input battery is connected in reverse. DIASINE® has the exclusively own built-in circuit of input reverse polarity protection. This circuit protects DIASINE® not to get damaged even if the battery is connected with reverse polarity. Moreover, the reverse polarity warning LED of DIASINE® lights immediately to inform the user the reverse polarity connection.
Wide input voltage range
The input voltage range of DIASINE® is wider than other inverters in the same class. Therefore, batteries with wide range variation of voltage, such as lithium-ion batteries, can be used. It is also possible to charge battery while the DIASINE® is operating.
Wide range of operating temperature
DIASINE® operates under a wide range of temperature from -20 to 60°C. *DIASINE® GD300 will not stop the output automatically. Under the environment with temperature exceeding 40°C, please use the load along refer to the derating curve of each model.
Pure sine wave output and high efficiency
The output waveform is as same as the sine wave of commercial power supply, of which the total harmonic distortion is less than 3%. High-efficiency circuit and switching control achieve over 89% efficiency at rated load. It contributes to the stability of the system during operation without extra wasted energy consumption.
Switchable output voltage and frequency
The output voltage 100/110/115/120 Vac, and frequency 50/60 Hz easily switch by buttons. DIASINE® adapts to areas with different voltage, frequency, and various electric appliances.
| Model | GD300NA-112 | GD300NA-124 | GD300NA-148 | GD300NU-212 | GD300NU-224 | GD300NU-248 |
|---|---|---|---|---|---|---|
| Output rated power | 300VA | |||||
| Output peak power(3mins.) | 360VA | |||||
| Surge power(3secs.) | 420VA | |||||
| Input Battery Voltage | 12Vdc | 24Vdc | 48Vdc | 12Vdc | 24Vdc | 48Vdc |
| Output frequency (switchable) | 100(default)/110/115/120Vac | 230(default)/200/220/240Vac | ||||
| Output frequency (switchable) | 50±0.1Hz(default)50/60Hz | |||||
| Output waveform | Sine wave( <3%THD) | |||||
| No-load current*1(Low power mode) | 89% | 90% | 90% | |||
| No-load current※1 (Low power mode) |
0.6A | 0.2A | 0.1A | 0.7A | 0.4A | 0.2A |
| No-load current※1 (Normal mode) |
0.7A | 0.3A | 0.2A | 0.8A | 0.5A | 0.3A |
| Standby mode consumption※1 |
7mA | 7mA | 4mA | 7mA | 7mA | 4mA |
| Sleep mode consumption※1 |
1mA | 3mA | 2mA | 2mA | 4mA | 3mA |
| Input voltage range※2 | 10.5～19.5Vdc | 21～39Vdc | 42～78Vdc | 10.5～17Vdc | 21～34Vdc | 42～68Vdc |
| Protection | Under Voltage Protection, Over Voltage Protection, Input Reverse Polarity, Over Load Protection, Short Circuit Protection, Output Voltage Error, Over Temperature Protection (Detect by internal temperature sensors) |
|||||
| Safety standards | EN62368-1 | |||||
| EMC | Immunity EN55024 Emission EN55032 |
|||||
| Withstand voltage | Battery I/P– AC O/P：3.0kVac AC O/P– Ground：1.5kVac Battery I/P– Ground：1.5kVac |
|||||
| Isolation resistance | >1000MΩ/500Vdc/25℃/70%RH | |||||
| Vibration | 10～500Hz,3G 10min./ 1cycle, 60mins. XYZ axes | |||||
| Operating temperature※3 | -20～+40°C at rated load, +60°C at 70％ load | |||||
| Operating humidity | 20～90%RH non-condensing | |||||
| Storage temperature/ humidity | -30～+70°C, 10～95％RH non-condensing | |||||
| Socket Type |  |
 |
||||
| Cooling | Natural convection | |||||
| Dimensions (L×W×H) |
234.0×146.5×44.0mm | |||||
| Weight | 0.9kg | 1.0kg | ||||
◆Specifications and appearance may change without prior notice.
◆All parameters NOT specially mentioned are measured at 112: 12Vdc, 124: 24Vdc, 148: 48Vdc input, rated load 300VA, power factor = 1.0, 25°C of ambient temperature and under the default setting.
※1 Average.
※2 Tolerance of voltage: 112：±0.5V, 124：±1V and 148：±2V.
※3 Please refer to the derating curve graph.

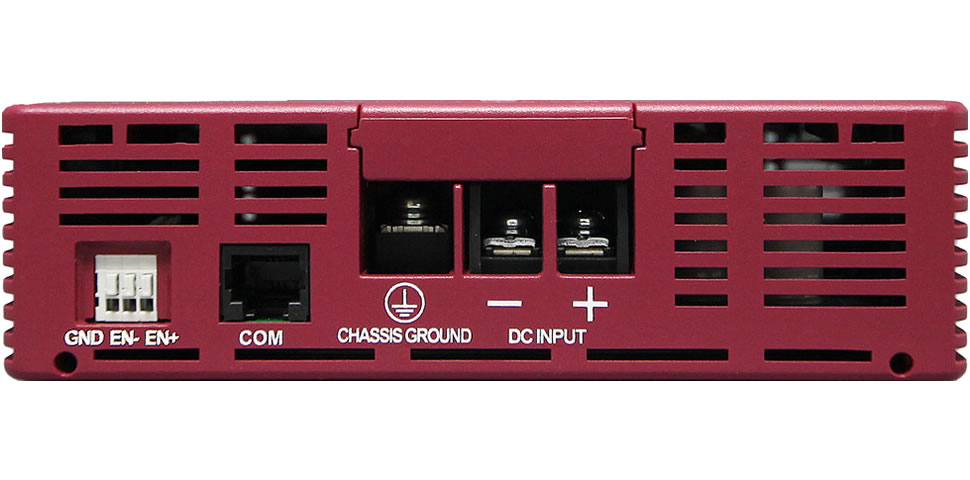

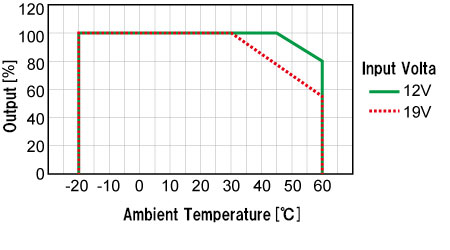

GD300NA-112

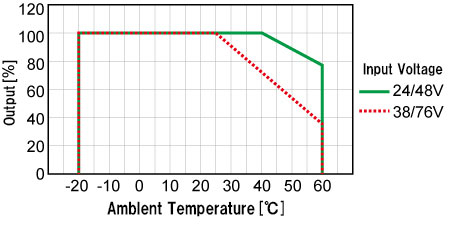

GD300NA-124/148

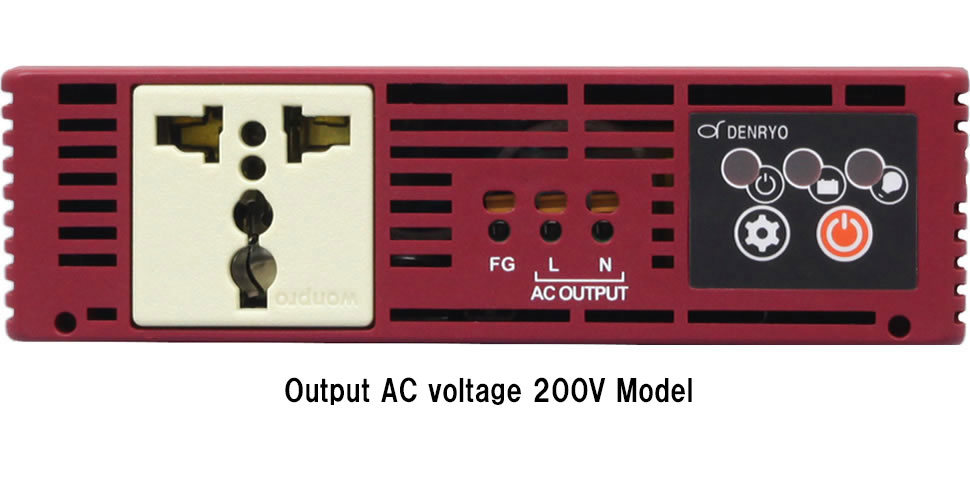

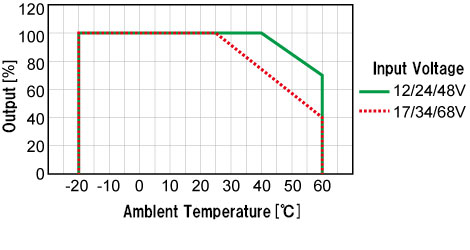

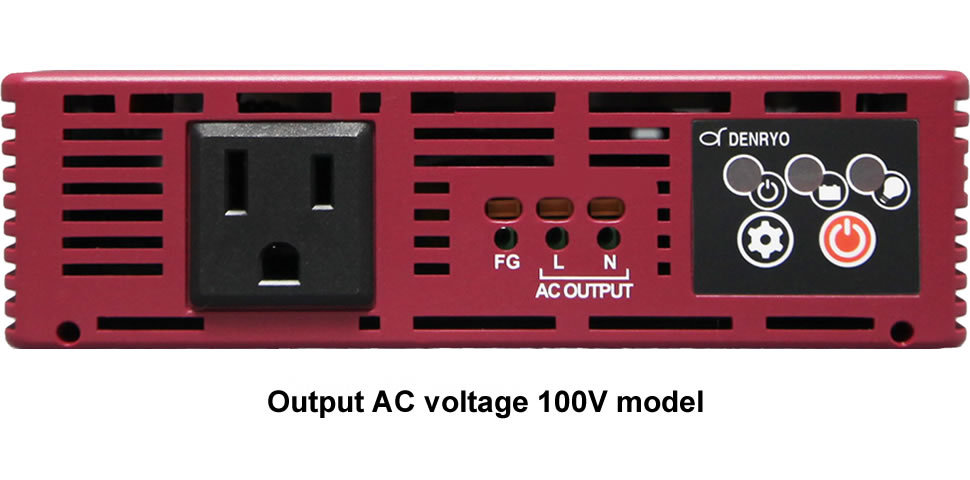

GD300NU-212/224/248
