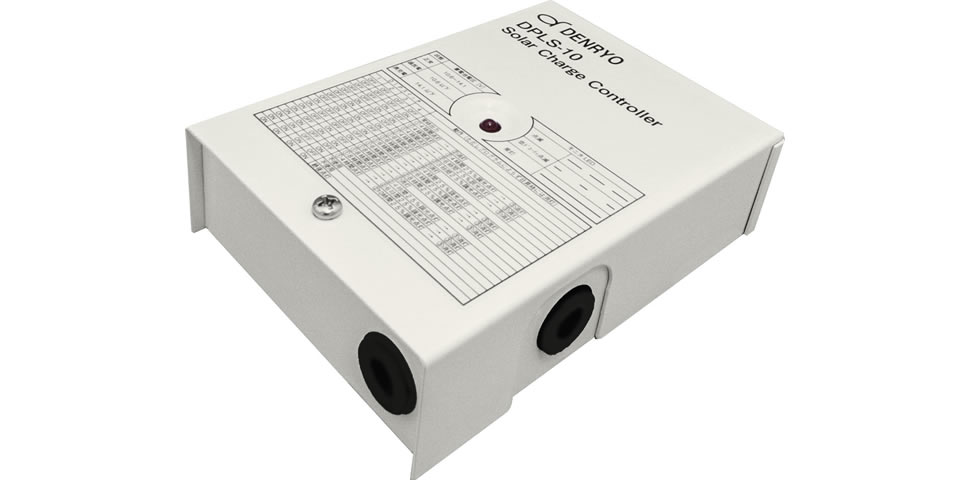

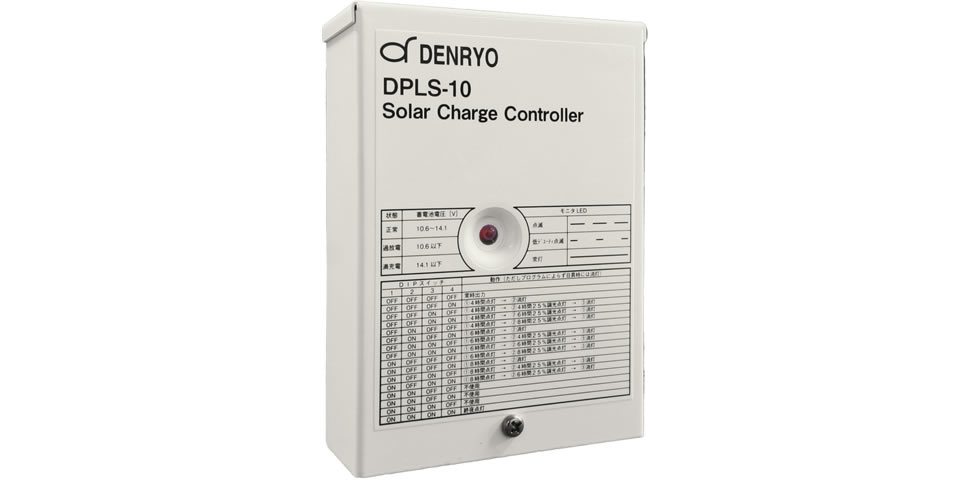

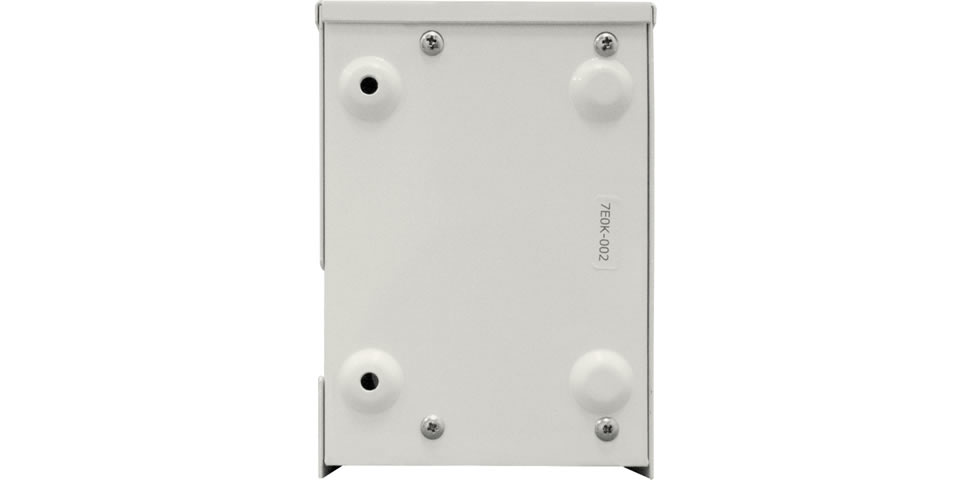

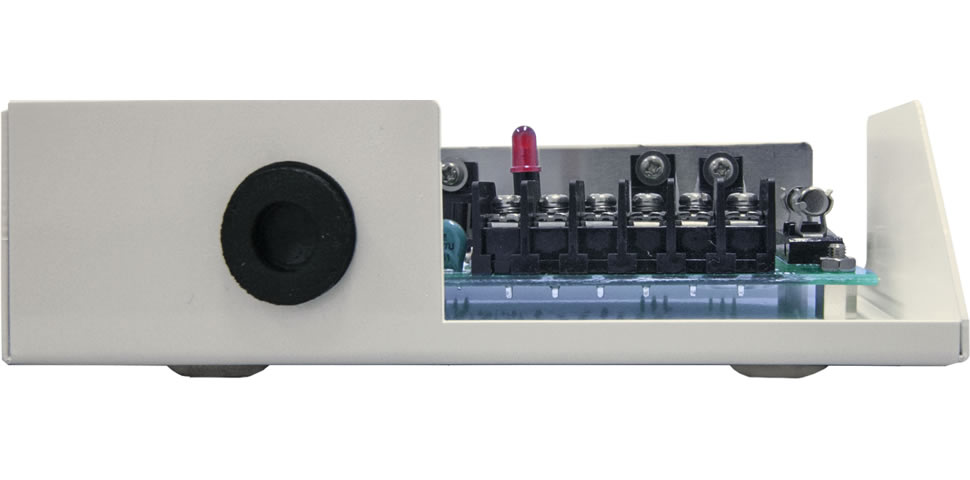

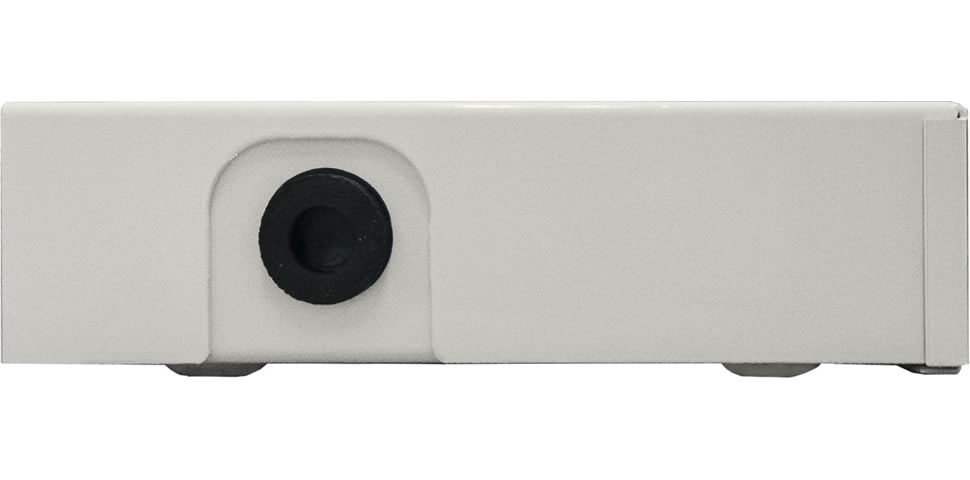

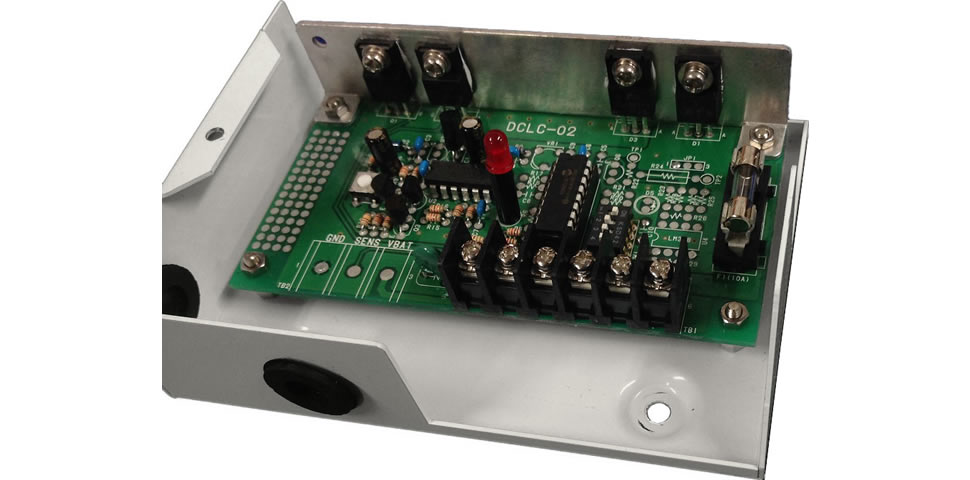

DPLS-10

拡大写真

Low Self-Consumption

The self-consumption current of DPLS is about 9mA. It achieves a longer stability of the system. Moreover, it has also improved the performance of the system.

The Switch Controls of PWM ＆ PFM

The controller controls the output current by PMW in the regular circumstances. When the loads get low, the controller controls the current by PMF. These have improved the performance of system.

Lighting Control Options

DIP Switch Settings
Function
1 2 3 4
OFF OFF OFF OFF OFF
OFF OFF OFF ON 4 hours ON　
OFF OFF ON OFF 4 hours ON -> 4 hours PWM Dimming to 25%
OFF OFF ON ON 4 hours ON -> 6 hours PWM Dimming to 25%
OFF ON OFF OFF 4 hours ON -> 8 hours PWM Dimming to 25%
OFF ON OFF ON 6 hours ON
OFF ON ON OFF 6 hours ON -> 4 hours PWM Dimming to 25%
OFF ON ON ON 6 hours ON -> 6 hours PWM Dimming to 25%
ON OFF OFF OFF
6 hours ON -> 8 hours PWM Dimming to 25%
ON OFF OFF ON
8 hours ON
ON OFF ON OFF 8 hours ON -> 4 hours PWM Dimming to 25%
ON OFF ON ON 8 hours ON -> 6 hours PWM Dimming to 25%
ON ON OFF OFF Not Available
ON ON OFF ON Not Available
ON ON ON OFF Not Available
ON ON ON ON DUSK-to-DAWN
Model DPLS-10
System Voltage 12Vdc
Max Input Voltage 30Vdc
Solar Input Current 10A
Load Current 10A
Self-Consumption Current 9mA
Charging Method PWM＆PFM
Charging Voltage 14.1Vdc
Load Disconnect 10.6Vdc
Load Reconnect 12.5Vdc
Ambient Temperature Range -20～+60℃
Operating humidity 30～90％RH(non-condensing)
Dimensions 96×130×40mm
Weight 420g
◆The specifications are subject to change without notice.
